>High Lift Trucks |
|
 |
| |
 |
| |

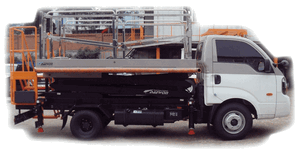

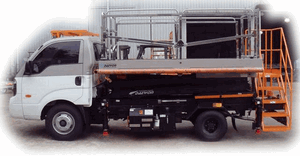

| 1.2Ton 트럭 기반 SMALL LIFT TRUCK | |
|
| |
|
|
| 1 |
형식 |
DSLT12-001 |
8 |
너비(mm) |
1700 |
| 2 |
규모별 분류 |
소형 |
9 |
Hydraulic Relife(bar) |
100 |
| 3 |
승차 정원 |
2 |
10 |
Transmission Type |
수동 |
| 4 |
용도 |
항공기 정비용 |
11 |
배기량(cc) |
6606 |
| 5 |
리프트 용량(Kg) |
250 |
12 |
연료 |
경유 |
| 6 |
차량 총 중량(Kg) |
3290 |
13 |
리프트 최대 높이(mm) |
6100 |
| 7 |
길이(mm) |
5640 |
|
|
|
|
|
|
| 5Ton 트럭 기반 중형 HIGHLIFT TRUCK |
|
| |
| 1 |
형식 |
DHLT05-001 |
8 |
너비(mm) |
2420 |
| 2 |
규모별 분류 |
대형 |
9 |
Hydraulic Relife(bar) |
100 |
| 3 |
승차 정원 |
3 |
10 |
Transmission Type |
수동 |
| 4 |
용도 |
항공기 정비용 |
11 |
배기량(cc) |
6606 |
| 5 |
리프트 용량(Kg) |
500 |
12 |
연료 |
경유 |
| 6 |
차량 총 중량(Kg) |
10270 |
13 |
리프트 최대 높이(mm) |
8330 |
| 7 |
길이(mm) |
7400 |
|
|
|
|
| |
| |
| 8Ton 트럭 기반 대형 HIGHLIFT TRUCK |
 |
 |
| 제품설계의 시작부터 작업자의 안전을
최우선으로 하였습니다. 견고한 2단 시저와 튼튼한 스테빌라이저로 플랫폼이
최고 높이에서도 흔들림이 적어 작업자의 공포심을 최소한으로 줄여 항공기
정비작업을 안정적으로 할 수 있게 하였습니다. |
|
|
|
| |
|
| |
|
|
| |
Deluxe Type |
Ultra Type |
Side Sliding
Platform |
Pieces of platform |
LEFT:5 RIGHT:5 |
LEFT:23 RIGHT:23 |
| size |
WIDTH:1100mm
Extension Range:600mm |
WIDTH:238mm
Extension Range:600mm |
Front Sliding
Platform |
Pieces of platform |
1 |
1 |
| size |
WIDTH:2360mm
Extension Range:3000mm |
WIDTH:2440mm
Extension Range:3000mm |
| Boarding to the main
platform |
Ladder/Stair type |
Ladder/Stair type |
|
| |
|
| |
Deluxe Type |
Ultra Type |
| Gross Vehicle Weight |
15,300Kg |
15,600Kg |
| Max Speed |
102Km/h |
102Km/h |
| Lift Capcity |
1,300Kg |
1,500Kg |
| Length |
9,665mm |
10,600mm |
| Widht |
2,495mm |
2,495mm |
| Height |
3,393mm |
3,410mm |
| Wheelbase |
5,960mm |
5,960mm |
| Turning Radius |
10,100mm |
10,100mm |
|
| |
|
Chassis : Hyundai / Daewoo Cargo 8.5Ton Diesel engine(250PS),
Power steering
Payload capacity 1,300 ~1,500Kg (Evenly distributed load)
Dual 3Step Telescopic Cylinder.
Dual control stations, both equipped with Emergency Engine
Stop switches, and engine remote start at the upper control
station.
Hydraulic Powered 3,000mm fwd. Platform extension.
Stabilizer (“A” Type )
sdSafety
Interlocks which prevent the vehicle from moving when the
Hi-Lift platform is raised or sdtabilizer
outriggers are extended. Interlocks which prevent from raising
the Hi-Lift platform if the sdtabilizers
are not deployed, and retracting the stabilizers when the
High-Lift platform is not fully sdowered.
Extendable over-cab platform extends forward (up to 3,500mm)
Emergency hand pump (Hydraulic)
Hour meter.
Platform mounted fire extinguisher.
Remote control cable type. (On Platform )
Safety warning amber beacon located over the vehicles cab
roof.
Deluxe Type Both side extensions sub platform. (Left 5ea
/ Right 5ea )
sdRemovable
socket-mounted handrails at both left and right.
Warning buzzer. (Vehicle back, Platform UP/DN)
Aluminum check plate: Thickness 4.5mm. (Platform floor)
Platform cushion rubber bumper. (All Sides)
Fall protection safety harness attach rings, recessed type,
on platform floor.
Platform work lights. (Moving 1ea & Fix 3ea)
Painted in a single color. |
| |
|
Automatic Transmission. ( Allison MD3060 )
Power Pack DC24V (Hydraulic)
Platform work lights. ( Moving 1ea & Fix 5ea )
Cab roof Window.
Air compressor with platform service outlets.
Air service quick connect outlets.
A.C generator with platform service outlets.
Painted to customer’s color requirements. |
| |
| |
| |
| |
| |
| |
| |
